The model picture of 30Ton 300kn zinc alloy hot chamber die casting machine
The features of 30Ton zinc alloy hot chamber die casting machine
--Sila zaklepanja je 300kn
--suitable for zinc , lead alloy and have low melting point non-ferrous metals
--notranji prostor med palicami je 240 x 240 mm
--debelina bloka matrice je 120/320
--stroji so udobni, prihranijo čas-in so pri upravljanju in vzdrževanju brez napora
--PLC (mitsubishi) controller
--the machine has the advantage of energy saving
The specification of J213D 30TON fully automatic zinc alloy hot chamber die casting machine
Details of J213D 30TON fully automatic zinc alloy hot chamber die casting machine
The hot chamber die casting machine automatic working process :
The automatic working cycle of the machine is as follows: die closing →injection → injection delay
→injection return →cooling delay → die opening → ejection forward→ ejection backward →push off
→push off back→ detect casting → spraying the die casting mould →die closing →.
Dejanje ozZapiranje in odpiranje matricewill by the double-toggle connecting rod expanding-force unit. At the same time, the machine uses the gear-driven unit with special emphasis on ease of operation and ensuring an accurate depth of parallelism between the moving platen and the fixed platen.
Theenota za vbrizgavanje of hot chamber die casting machine including gooseneck pot , oil cylinder , nozzle and other heating parts . The complete injection unit is fixed on the machine base bracket, which is a part of machine base.
Izmetna enota za tlačno litje----The machine is equipped with a hydraulic ejector with an ejection force of 35kN. It can set the ejection times in the human-computer interface.
škropljenjeKalupi za tlačno litje-z mazivom --- Stroj za tlačno ulivanje-mora uporabljati mazivo za tlačno ulivanje-za svoje-oblike za tlačno litje. Ko uporabljate oljno mazivo za tlačno{5}}litje, bodite pozorni na izogibanje nevarnosti požara.
Odrivna enota za tlačne ulitke ----The machine is equipped with a pneumatic push off unit which is mounted on the rear bracket of fixed platen. After die-opening and ejection, the push off unit begin to start.
After-service of us
We have one year warranty of die casting machine
The tec master can overseas to help to guide operation
We can provide installtion online or the video
About us

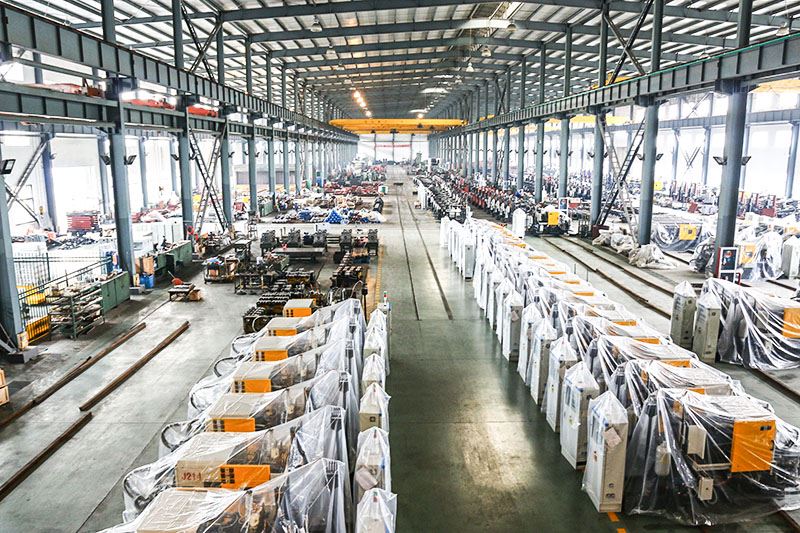

Since its foundation in1981, after a 40 years's development and dedication, Ningbo Dongfang Die -casting Machine Co.,Ltd has owned 40000 square meters production bases. Ningbo Dongfang Die -casting Machine Co.,Ltd is a high-tech company specializing in manufacture and export of hot and cold chamber die casting machines and after-sales services.
